Specification & Standards –
- The 909PB separable connector meets the requirements of CENELEC HD 629.1
Technical Characteristics –
- A thick conductive EPDM jacket provides a total safe to touch screen.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Design –

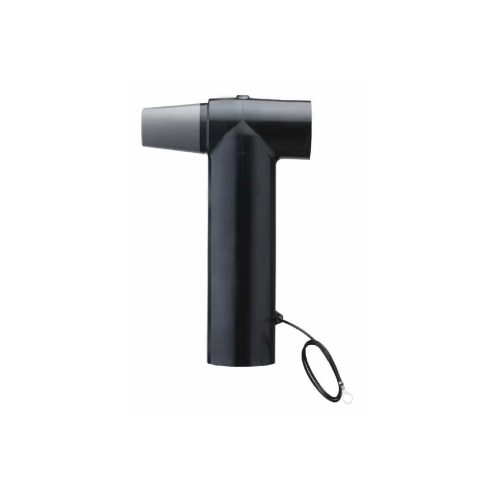

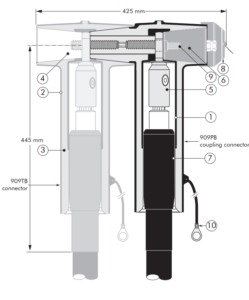

Separable connector comprising:
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer moulded between the insert and the jacket.
- Interface to fit 909TB.
- Conductor contact.
- Basic insulating plug.
- Cable reducer.
- Conductive rubber cap.
- Stud+nut+washer.
- Earthing lead.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
| Separable connector type | Voltage Um (kV) | Current Ir (A) | Conductor sizes (mm²) | |
|---|---|---|---|---|
| min | max | |||
| 909PB/G | 12 | 630 – 1250 – 2500 | 500 | 1200 |
| K909PB/G | 24 | 630 – 1250 – 2500 | 400 | 1200 |
| M909PB/G | 36 | 630 – 1250 – 2500 | 240 | 1200 |
| P909PB/G | 42 | 630 – 1250 | 240 | 1200 |
