Technical Characteristics –
• Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.

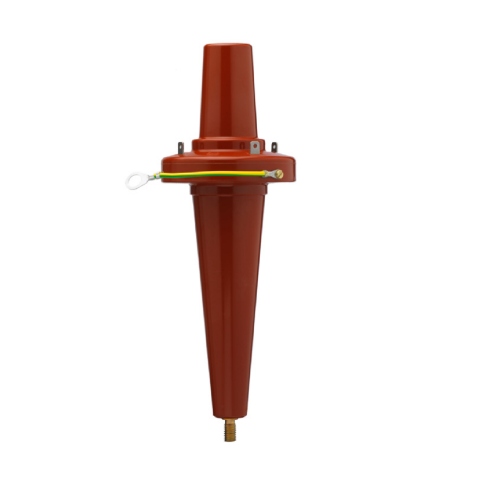

• The plug-in type equipment bushings are moulded epoxy insulated parts and meet the requirements of IEC 60137. The (K)(M)400T1 also meets CENELEC EN 50180.
Specification and Design –
• To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering (e.g. K400T1/J)

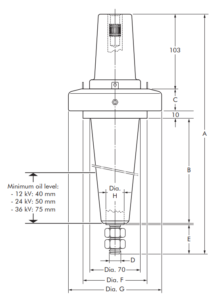

| Equipment Bushing Type | Voltage Um (kV) | Current Ir (A) | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | Dia. F | Dia. G | Dia. H | |||
| 400T1 | 12 | 400 | 310 | 144 | 30 | M12 | 22 | 88 | 128 | 16 |
| K400T1 | 24 | 400 | 310 | 144 | 30 | M12 | 22 | 88 | 128 | 16 |
| M400T1 | 36 | 400 | 310 | 144 | 30 | M12 | 22 | 88 | 128 | 16 |
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
