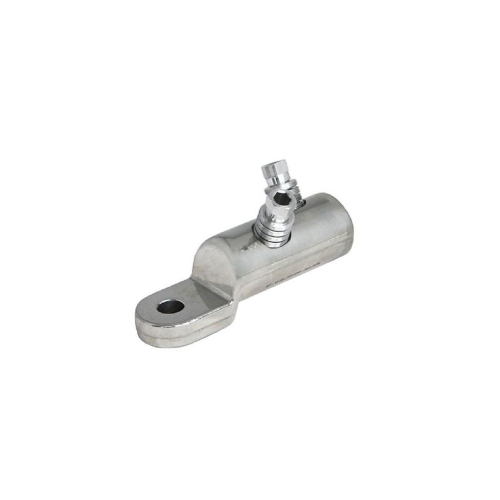

Advantages –
- Simple, quick installation- With common commercially available inner and outer hexagon tools or an approved impact wrench.
- Minimum storage costs- The cross-section range from 16 mm² to 1200 mm² is covered by just 4 types of lugs.
- Universal applicability- Shear bolt lugs can be used for copper and aluminum conductors according to EN 60228 classes 1 & 2. For use of our mechanical cable lugs with class 5 flexible copper conductors, please contact us.
- Proven quality- Tested for class 2 conductors according to IEC 61238-1-A, in failure-free operation for more than 20 years.
Design –
- Material:
- Connector Body: high strength aluminum alloy
- Bolts: brass, tin-plated, with inner and outer hexagon from aluminum alloy
- Surface:
- Connector Body: tin-plated

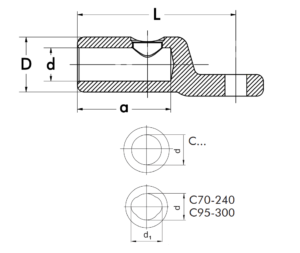

| Mechanical cable lug type | Conductor cross-section AL (mm²) | Conductor cross-section CU (mm²) | Number of bolts | Dimensions (mm) | Palm hole dia. (mm) | Tool outer and inner hexagon | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| rm(v) | re | sm | rm(v) | sm | L | d | D | b | ||||
| C16-95 x 12 | 16-95 | 16-95 | 25-70 | 16-95 | 25-70 | 1 | 60 | 12.5 | 24 | 32 | 13 | SW10 & SW6 |
| C16-95 x 16 | 17 | |||||||||||
| C25-150 x 12 | 25-150 | 25-150 | 35-120 | 25-120 | 35-120 | 1 | 79 | 15.5 | 30 | 35 | 13 | SW10 & SW6 |
| C25-150 x 16 | 17 | |||||||||||
| C70-240 x 12 | 70-240 | 70-240 | 70-240 | 70-240 | 70-240 | 2 | 93.5 | 22 1 | 35 | 56 | 13 | SW13 & SW6 |
| C70-240 x 16 | 17 | |||||||||||
| C95-240 x 12 | 95-240 | 95-240 | 95-185 | 95-240 | 95-185 | 2 | 95 | 20 | 33 | 56 | 13 | SW13 & SW6 |
| C95-240 x 16 | 17 | |||||||||||
| C95-300 x 12 | 95-300 | 95-300 | 95-240 | 70-300 | 70-240 | 2 | 105 | 231 | 36 | 67 | 13 | SW13 & SW8 |
| C95-300 x 16 | 17 | |||||||||||
| C120-300 x 12 | 120-300 | 120-300 | 120-240 | 120-300 | 120-240 | 2 | 105 | 25 | 38 | 67 | 13 | SW19 & SW6 |
| C120-300 x 16 | 17 | |||||||||||
| C185-400 x 12 | 185-400 | 185-400 | 185-300 | 185-400 | 185-300 | 3 | 120 | 26 | 42 | 82 | 13 | SW19 & SW6 |
| C185-400 x 16 | 17 | |||||||||||
| C300-500 x 12 | 300-500 | 300-500 | 300-400 | 300-500 | 300-400 | 3 | 130 | 34 | 52 | 94 | 13 | SW19 & SW8 |
| C300-500 x 16 | 17 | |||||||||||
| C400-630 x 12 | 400-630 | 400-630 | 400-500 | 400-630 | 300-500 | 3 | 130 | 34 | 52 | 94 | 13 | SW19 & SW8 |
| C400-630 x 16 | 17 | |||||||||||
| C400-630 x 201 | 21 | |||||||||||
| 630-1000 x 202) | 630-1000 | 630-1000 | 630-1000 | 4 | 165 | 41 | 65 | 105 | 21 | SW19 & SW8 | ||
| C800-1200 x 202) | 800-1200 | 630-1200 | 630-1000 | 4 | 170 | 45 | 72 | 105 | 21 | SW22 & SW8 | ||
