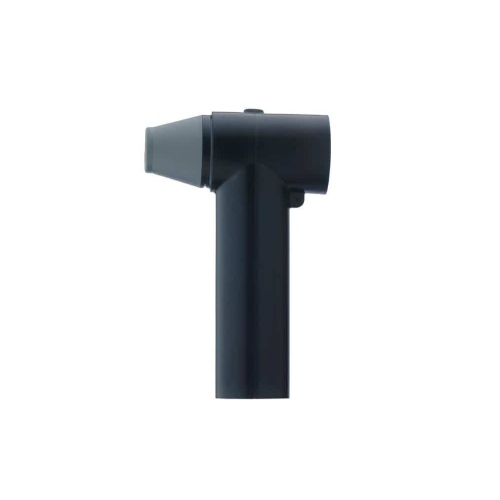

Specification & Standards –
- The 800PB coupling connector meets the requirements of CENELEC HD 629.1.
Technical Characteristics –
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

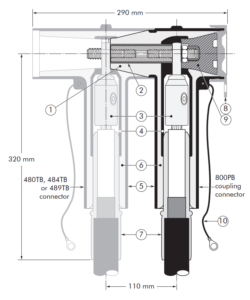

Design –
- Interface designed to fit 480TB, 484TB and 489TB connectors.
- Contact rod for 800PB.
- Conductor contact.
- Conductive EPDM insert.
- Conductive EPDM jacket.
- Insulating EPDM layer moulded between the insert and the jacket.
- Cable reducer.
- Conductive EPDM cap.
- Basic insulating plug.
- Earthing lead.
The screen break design enables cable outer sheath testing without removing or dismantling the connector.
| Separable connector type | Voltage Um (kV) | Current Ir (A) When installed on C1 type bushing | Current Ir (A) When installed on C2 type bushing | Conductor sizes (mm²) | |
|---|---|---|---|---|---|
| min | max | ||||
| 800PB/G | 12 | 630 | 1250 | 16 | 300 |
| K800PB/G | 24 | 630 | 1250 | 16 | 300 |
| M800PB/G | 36 | 630 | 1250 | 35 | 240 |
| P800PB/G | 42 | 630 | 1250 | 35 | 240 |
