Technical Characteristics –
- Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
- The bolted type equipment bushings 775S1 meet the requirements of IEC 60137.
Specification and Design –

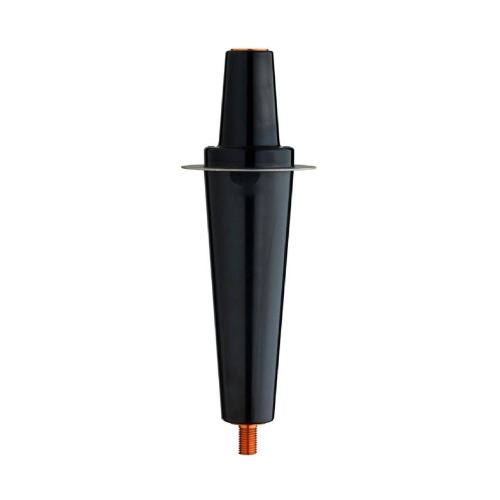

- The equipment bushing is a moulded epoxy insulated part in accordance with ANSI/IEEE 386 std. (5/8″ threading system).

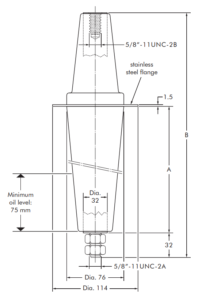

| Equipment Bushing Type | Voltage Um (kV) | Current Ir (A) | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | |||||||||
| 775S1 | 36 | 1250 | 75 | 235 | ||||||
Nexans Euromold fixings for Equipment Bushings are also available. Connect with us to know more.
