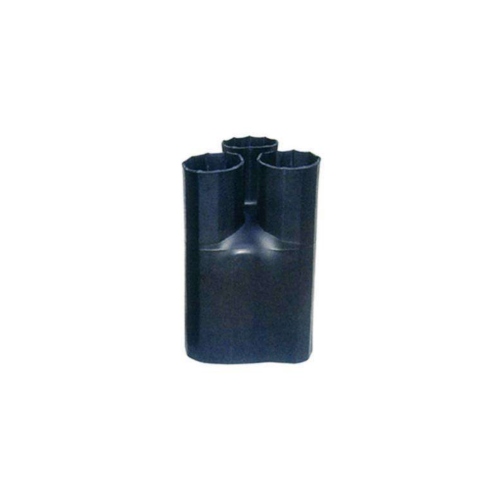

Beyond their primary function, these breakouts play a crucial role in protecting cable joints and terminations by preventing water entry into the cable. Moreover, they find application in Trifurcation kits for Separable Connectors up to 42 kV, showcasing their versatility and reliability across various electrical configurations.
| Code | D | d | P | F | Tb | Tf | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| E | S | E | S | E | S | E | S | S | S | |
| min | max | min | max | min | max | min | max | ±10% | ±10% | |
| PHSSC-3-LV-65/23-27/9 | 65 | 23 | 27 | 9 | 175 | 185 | 50 | 55 | 2.5 | 1.5 |
| PHSSC-3-LV-105/32-45/12 | 105 | 32 | 45 | 12 | 195 | 205 | 60 | 63 | 2.5 | 2.0 |
| PHSSC-3-LV-112/43-55/19 | 112 | 43 | 55 | 19 | 215 | 220 | 65 | 65 | 2.5 | 2.5 |
| PHSSC-3-LV-125/48-48/21 | 125 | 48 | 48 | 21 | 210 | 230 | 70 | 85 | 3.5 | 3.5 |
| PHSSC-3-LV-140/56-68/28 | 140 | 56 | 68 | 28 | 250 | 245 | 90 | 95 | 3.5 | 3.5 |
All dimensions are in mm E = Expanded/Supplied S = Recovered
